Front End Suspensions



**”FEATHERWEIGHT” FRONT SUSPENSION AND FRAME KITS***





back to top

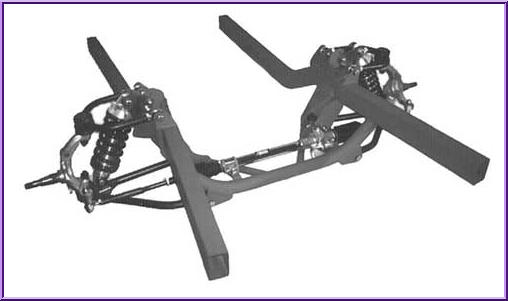

COILOVER “FEATHERWEIGHT”Take up to or more than 400# off of your car or
truck. Features a jig-welded frame structure with
the proper geometry and alignment built in..NO
BUMPSTEER. Standard width is 56″ hub to hub measurement. Other widths are made to order.
Features: * All Tubular A-arms
*Aldan coilovers
*Rack & Pinion Steering
*Mustang II Spindles
*Adjustable height mounts (std)
*Extra Low Stance
*Extra Oil Pan Clearance
*Extra Wide Radiator Clearance (OEM)
*Made from 2×3,11ga.wall thickness.
(not inferior .083 wall) using
our “No wrinkle technology”
COMPLETE KIT INCLUDES: everything shown above!
Part# 6900..Complete as shown…..$2979.50
Includes: fixture welded frame
with adjustable coilover mounts,
rack&pinion, tubular
A-arms (upper & lower),
Aldan coilovers (single adjust),
new Mustang II spindles.
(very complete!)
***
*UPGRADES are as follows:
QA1 (single adjust)..add…$20.00
QA1 (double adjust)..add…$155.00
***
*NOTE…Standard front clip rails
extend back under the floor about
35″ from the rear bend.
*Extra long rails running toward
rear of car are available
for an additional $100
(back to the rear clip)
***
Note: If longer rails are
needed, the customer may
have to supply a measurement
from the spindle centerline…
back to where the frame rails end.
***
INDIVIDUAL PIECES:
* Basic Jig Welded Frame
Part#6901……$1521.24
**
* Lower Tubular Control
Arms W/ Ball Joint
Part#6925……$384.95
**
* Upper A-Arms
Part#6930,#6931…$284.95
**
* Aldan Coilovers
Part#7040……$529.75
***
QA1 coilovers
**QA1 (single adjust) $539.75
**QA1 (double adjust) $699.95
**
* Hardware Package: Bolts,
Tabs, Washers, & Nuts
Part#6942……$34.95

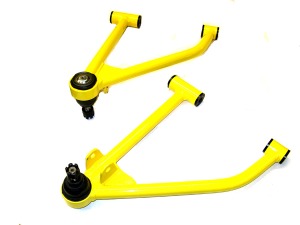

LOWER TUBULAR A-ARMS



–For “Featherweight” front clips with Coilover Shocks.
All A-arms include a ball joint and are powder coated.–

** LOWER CONTROL ARM
Part#6925……$384.95pr

SHOWN ABOVE

***

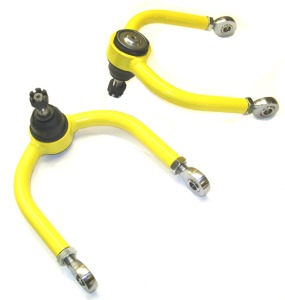

UPPER TUBULAR A-ARMS

SPECIAL NOTE:
–For “Featherweight” front clips with Coilover Shocks.
All A-arms include a ball joint and are powder coated.–

SHOWN ABOVE



OPTIONS:
* UPPER CONTROL ARM
W/ POLYURETHANE BUSHINGS
Part#6930……$284.95pr
**
* UPPER CONTROL ARM
W/ SPHERICAL ROD ENDS
Part#6931……$284.95pr
**
* REPLACEMENT BALL JOINT
FOR UPPER CONTROL ARM
Part#6940……$34.95PR

“CLICK HERE”

FOR OPTIONAL DISC BRAKES FOR OUR FEATHERWEIGHT FRONT ENDS

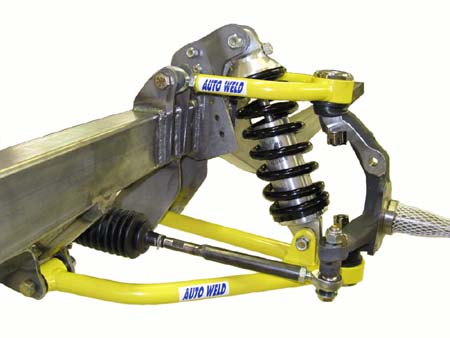

CLOSE-UP OF A COILOVER “FEATHERWEIGHT”

TIE ROD END CONVERSION KIT

–This kit is designed to convert the tie rod end to a rod end on a Pinto or Mustang II type
rack and pinion steering mechanism. All necessary hardware is included. This kit is used on
our “featherweight” front clips!!

** SHORT KIT, 6″ TUBE LENGTH
Part#6950…….$64.95
**
** LONG KIT, 8″ TUBE LENGTH
Part#6951…….$64.95

***

NEW 2X4 FLAT BENT FRONT CROSSMEMBER AND SUSPENSION

Features:

*Full welded crossmember *Tubular A-arms (upper and lower) * Rack & Pinion Steering * ALDAN AMERICAN EAGLE or QA1 coilovers * New Mustang II STD Spindles…(2″ drop Spindles optional) *Several popular widths available * (57″ hub to hub width standard) * Adjustable coilover mount (optional in some cases only ! shown below)  * All Standard models comes with a stationary upper mounts



Standard Crossmember &  suspension Part # 6960…….$3350.00

**Front suspension crossmember installed in frame(below)**

**For other Examples of installed suspension crossmembers (click here)**
